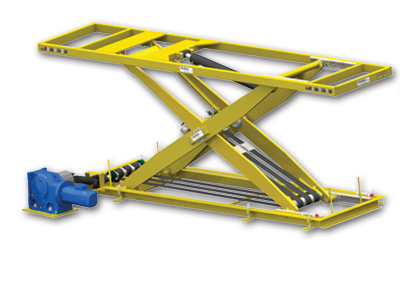

Belt Drive Scissor Lift Tables Engineered and Manufactured by EnKon, an Innovative Industry Leader
Enkon Systems Belt Drive Scissor Lift Tables are designed and built based on countless hours of knowledge from industrial applications. When your application requires lift tables to perform a specific way with respect to size, capacity, speed, duty cycle, safety features, etc. Enkon Systems will have a scissor lift that will meet your needs.
Enkon Systems' Electric Lifts provide precision control at all positions and speeds. Features such as long-standing static positioning and accurate repeatability allow maximum control in a variety of production applications.
A Michigan-Based Company EnKon Lifts are Proudly Designed and Manufactured in the USA
Precision controlled +/- .06 (1.5 mm)
Controlled descent device meeting
ANSI standards

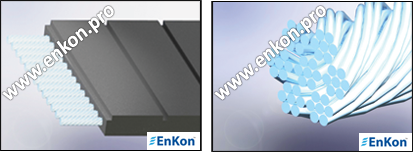

Anti-fall device - double belt system with limit switch control for extra safety
Very low maintenance requirements
Patented technology
Features and Benefits
Safety Locking Systems
Double nut system
(ACME screw) for anti-fall in the event
the load bearing nut fails
Catch nut system
(Ball screw) for anti-fall in the event
the load bearing nut fails
Hydraulic cylinder with velocity fuse locks the lift at infinite positions or controlled descent
Mechanical ratchet
lock arm or leg locks the lift at multiple
fixed positions
Multiple belt system
with
limit switches
Full redundant
belt integrated
with controls for anti-fall in the event
the primary belt fails
Fast acting motor brake
Electromotive Force
(EMF) controls
Precision controlled for accurate repeatability.
Professionally engineered
for performance maximization and versatility in integration.
All purpose lifting capacities
from 100 pounds (45 kg) up to 50,000 lbs (22,680 kg).
High-strength steel welded construction. Built to safety factors required
by customer’s application complies with ANSI MH29.1-1994.
High duty cycle for reliability.
PTFE (polytetrafluoroethylene) overlay on bearings at all
pivot points and self-lubricating for high loads and long life.
Speed easily controlled with Variable Frequency Drives (VFD) for smooth lift acceleration and deceleration.
Limit switch or encoder sensing options for accurate positioning.
Long standing static positioning for maintaining a load position indefinitely.
Integrates well with robotics, conveyors, skillet systems,
machine builders, workstations and production assembly lines for ease of use.
Compatible with alternating current AC or direct current
DC motors for versitility.
Clean and green technology -- places the power of the
motor where it is used for less power consumption and cleaner environment.
Low noise level decibel for meeting OSHA standards for work environment safety.
All surfaces cleaned, primed and coated with
enamel based acrylic paint.
Safety skirting - Accordion style to protect from pinch points and debris.
Safety toe stop to stop the lift’s downward
movement immediately.
